Kailh Box Jade Mechanical Switch

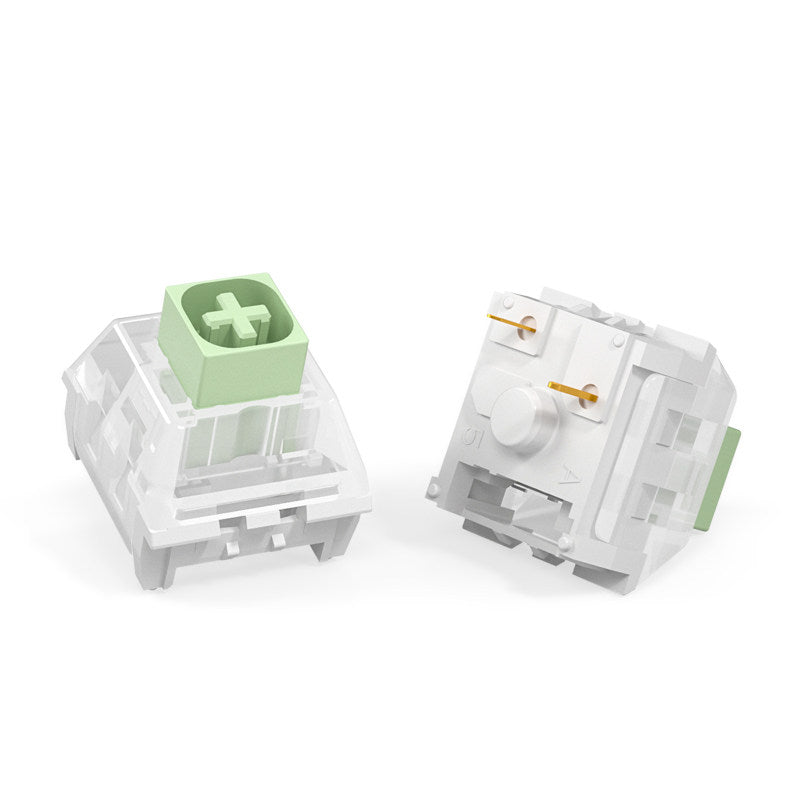

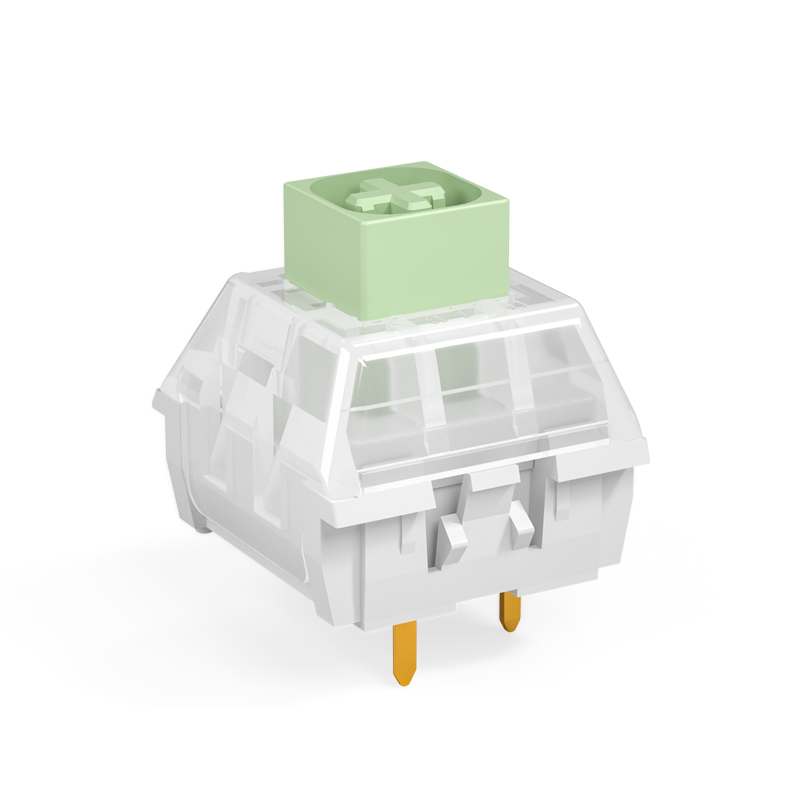

Kailh Box Jade clicky switch with a transparent housing and pale green box stem.

Kailh Box Jade clicky switches shown from the top and bottom to reveal the housing and pins.

Secure Payments

Fast Delivery

Global Warranty

24/7 Support

Kailh Box Jade Mechanical Switch

Sale price $8.60

Shipping calculated at checkout.

Loud Clicky Feel:
50±20gf operating force and 75±15gf bottom-out create a bright, tactile click for expressive typing.
Shorter Clicky Stroke:
1.8±0.4mm pre-travel and 3.6±0.3mm total travel keep the clicky response quick and distinct.
Box Jade Construction:
POM stem, PC top housing, and nylon PA66 bottom housing shape the classic Box Jade sound and feel.
3-Pin Compatibility:
3-pin structure and steel spring suit many compatible mechanical keyboard PCBs and plate layouts.
Light Support & Longevity:
LED support and up to 80M keystrokes make it durable for clicky custom keyboard builds.

Quantity

10 pcs

30 pcs

70 pcs

108 pcs

120 pcs

Quantity

Complete Your Setup

Setup 1

Setup 2

Setup 3

Last Shooting Cherry Profile Keycap Set

Default

$33.00

Silence Cherry Profile Keycap Set

Default

$33.00

Dashboard-Blue Cherry Profile Keycap Set

Default

$33.00

PIIFOX LUNA Muse65 Pro Mechanical Keyboard

White / PIIFOX Jade Peak

$96.40

PIIFOX LUNA Muse75 Pro Mechanical Keyboard

White / PIIFOX Jade Peak

$107.40

PIIFOX LUNA Grid98 Mechanical Keyboard

Standard / White / PIIFOX Jade Peak

$97.90

Keycap & Switch Pullers

Default

$6.99

PIIFOX Project Wander Desk Mat

Default

$27.90

PIIFOX Stellar Voyage Desk Mat

Default

$27.90

[{"id":52816245752089,"title":"10 pcs","option1":"10 pcs","option2":null,"option3":null,"sku":"S-BJAD-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Kailh Box Jade Mechanical Switch - 10 pcs","public_title":"10 pcs","options":["10 pcs"],"price":860,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52816245784857,"title":"30 pcs","option1":"30 pcs","option2":null,"option3":null,"sku":"S-BJAD-30","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Kailh Box Jade Mechanical Switch - 30 pcs","public_title":"30 pcs","options":["30 pcs"],"price":2580,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52816245817625,"title":"70 pcs","option1":"70 pcs","option2":null,"option3":null,"sku":"S-BJAD-70","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Kailh Box Jade Mechanical Switch - 70 pcs","public_title":"70 pcs","options":["70 pcs"],"price":6020,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52816245850393,"title":"108 pcs","option1":"108 pcs","option2":null,"option3":null,"sku":"S-BJAD-108","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Kailh Box Jade Mechanical Switch - 108 pcs","public_title":"108 pcs","options":["108 pcs"],"price":9288,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52816245883161,"title":"120 pcs","option1":"120 pcs","option2":null,"option3":null,"sku":"S-BJAD-120","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Kailh Box Jade Mechanical Switch - 120 pcs","public_title":"120 pcs","options":["120 pcs"],"price":10320,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Key Features

Shipping & Warranty Policy

Shipping: In-stock orders ship within 1-3 business days. Standard delivery takes 7-15 business days. Customers are responsible for customs fees.
Warranty: 12-month warranty for keyboards, kits, switches, keycaps, and mice; 3-month for batteries. Free accessories are not covered. Damage from unauthorized mods or improper charging (e.g., fast chargers) voids the warranty.

Contact Support

Need help? Contact us at service@piifox.com. We typically respond within 24-48 business hours.
To speed up the process, please include your order number, product model, and a short video or photo of the issue in your email.

Shipping & Warranty Policy

Contact Support

Secure Payments

Fast Delivery

Global Warranty

24/7 Support

Tweet on Twitter
Share on Facebook
Pin on Pinterest
Share on Tumblr
Share on LinkedIn
Copy Link

Kailh Box Jade Mechanical Switch

$8.60 Regular price

Add to cart

Features

Specs

FAQ

Downloads

Reviews

Heavy Pressure Tactile Feedback

The Kailh Box Thick Clicky Switches feature a thick click bar which creates a deeper, louder click sound as well as increases the tactile feedback tremendously. It has a consistent click and actuation feedback and generates a very crisp, full, typewriter-like signature sound that gets you excited to press every key press.

Square Dust Wall Design

The square dust wall around the stem is not only good for aesthetics but also provides dust protection and keycap stability.

Dustproof & Waterproof "Box" Structure

The exclusive "Box" structure protects the inner metal pieces of these switches from water and dust. It also extends the switches' lifespan and longevity.

Kailh Box Thick Clicky Navy/Jade Switch Backlight

Excellent Backlight Effect

The transparent cover of these switches is made of PC material to enhance the transparency effect. It also has an excellent backlight effect ideal for showcasing the RGB lights.

High Compatibility 3-Pin Design

This 3-Pin switch's base is engineered with a hollowed-out light position design to offer SMD-LED light compatibility and incorporates an MX stem structure to be compatible with most mechanical keyboards on the market.

Kailh Box Thick Clicky Navy/Jade Switch 3-Pin Design

Product Structure

Kailh Box Thick Clicky Navy/Jade Switch Structure

Tech Specs

Kailh Box Jade Mechanical Switch

BASIC INFO

Brand

Kailh

Switch Type

Mechanical Switch

Switch Feel

Clicky

Operating Force

50±20gf

Bottom-out Force

75±15gf

Pre-Travel

1.8±0.4mm

Total Travel

3.6±0.3mm

Sound Level

Loud

Factory Lubed

Pins

3-Pin

MATERIALS & STRUCTURE

Stem Material

POM

Top Housing Material

Bottom Housing Material

Nylon PA66

Spring

Spring Steel

Light Support

Yes

Operation Life

Up to 80 Million Keystrokes

FAQ

Linear: Smooth and quiet; Tactile: Noticeable bump for feedback; Clicky: Crisp "click" sound with a rhythmic feel.

No. The PCB is designed for Hall Effect sensors and lacks pin sockets. They are only hot-swappable with other compatible magnetic switches.

We encourage DIY! However, be careful with ribbon cables. Physical damage from improper disassembly may void the warranty.

Please contact us within 48 hours of receipt. Send your order number and a clear unboxing video/photos to our support email. Once verified, we will arrange a replacement or full refund.

This is usually because the metal pins on the bottom bent during installation. Please pull the switch out, straighten the pins with tweezers, align it with the holes, and press it in gently and vertically.
