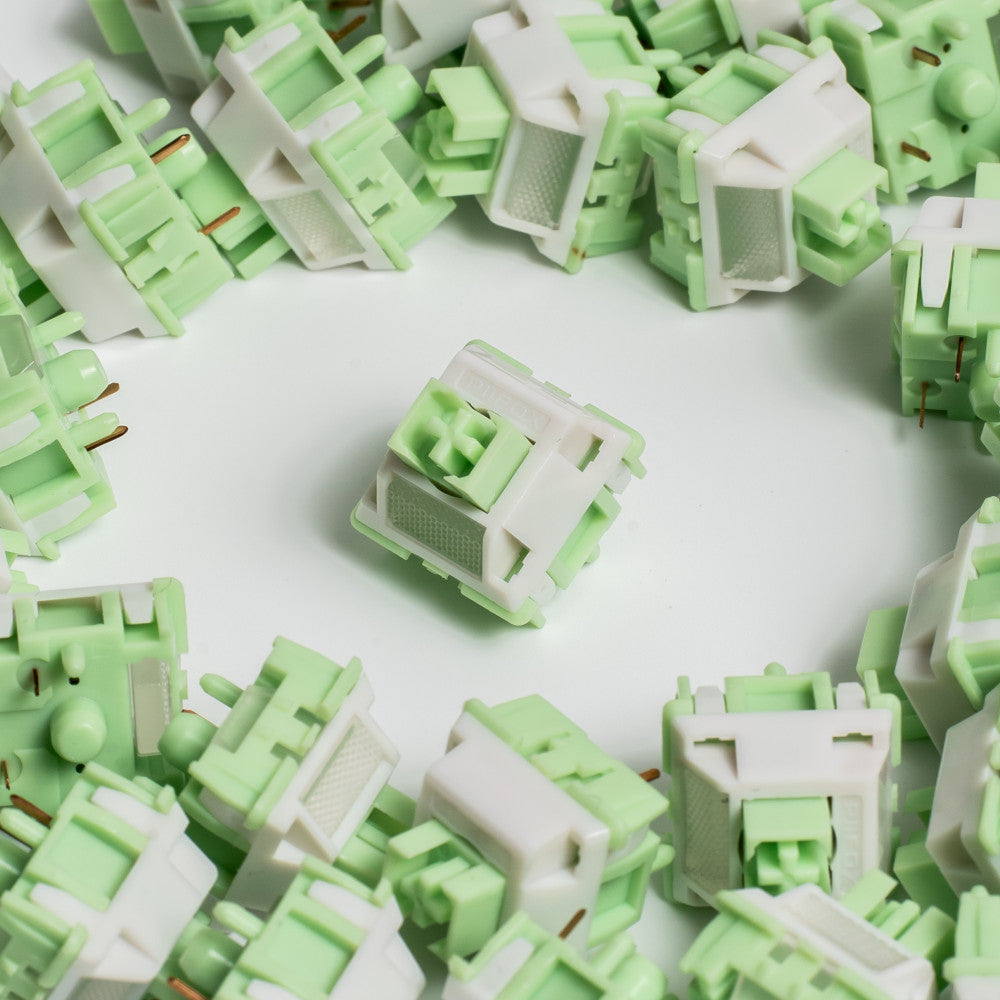

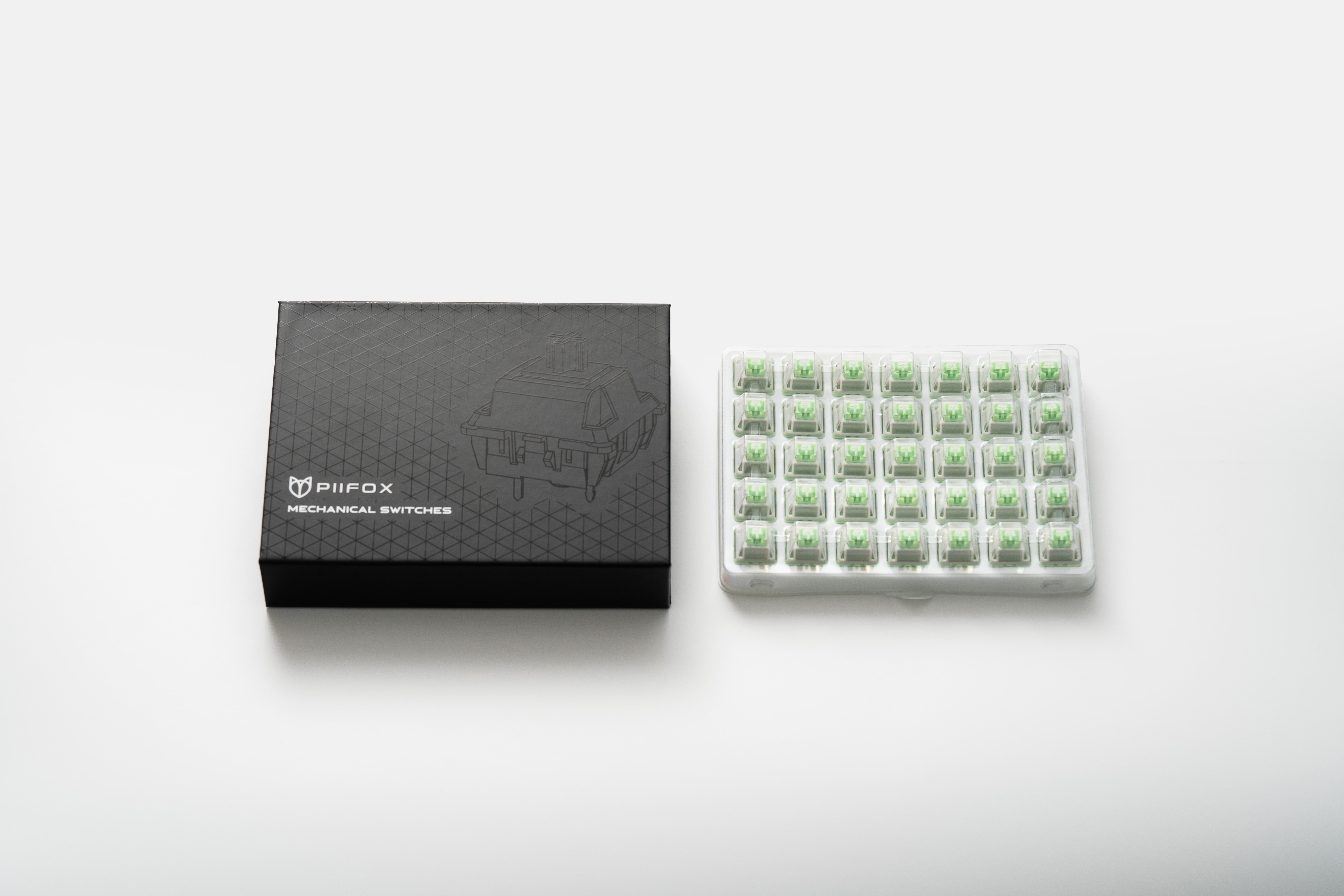

Jade Spike Tactile Mechanical Switch Set

PIIFOX Jade Spike Mechanical Switch

$6.65

Add to cart

Features

Specs

FAQ

Downloads

Reviews

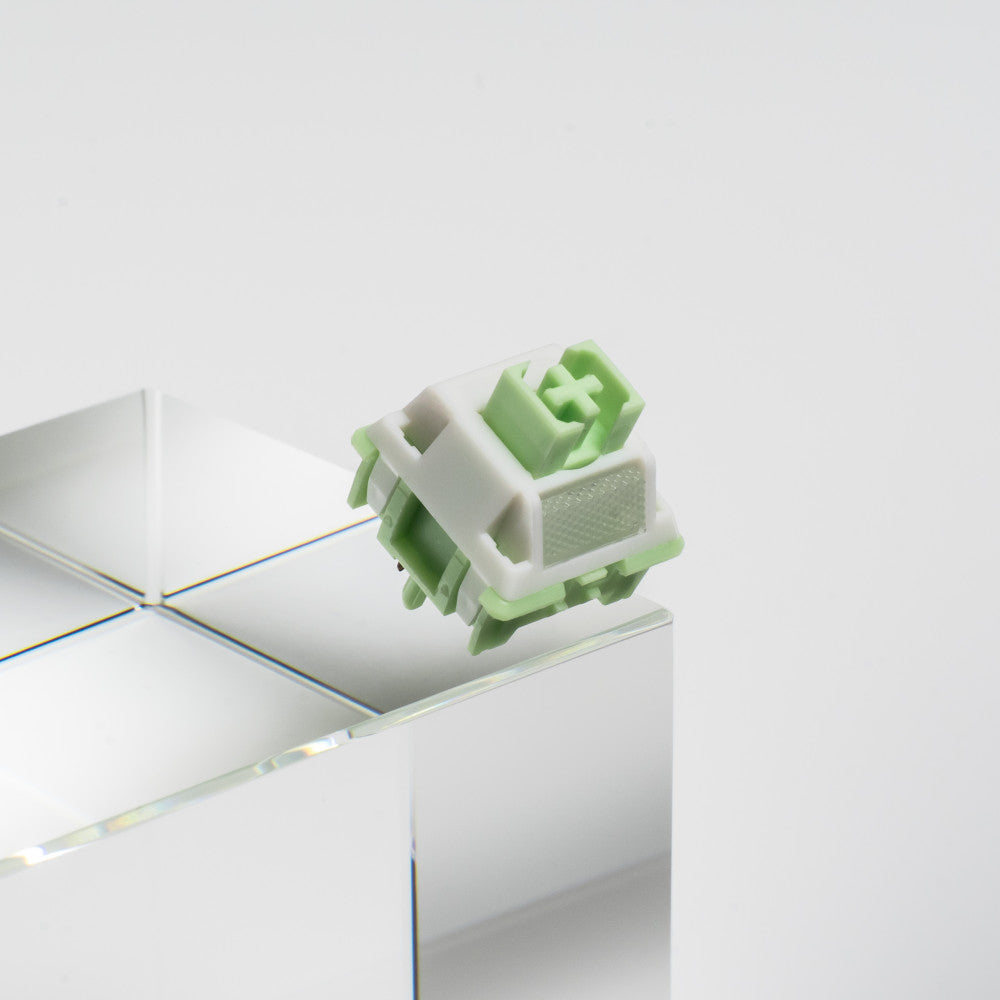

Tactile Feedback with a Deep Thocky Sound

PIIFOX Jade Spike is designed for users who enjoy a clear tactile bump with a deeper, more satisfying sound profile. With a 47±10gf operating force and 60gf bottom-out force, it delivers a stronger and more defined press than lighter switches. The 3.6±0.3mm total travel gives each keystroke a controlled and confident feel, while the thocky sound profile adds depth and character to every press.

PIIFOX Jade Spike Switch tactile bump 47gf thocky sound

Tactile Bump for More Defined Keystrokes

Jade Spike brings a more noticeable tactile feedback to every press. The tactile structure helps users feel the actuation more clearly, making each keystroke more precise, controlled, and satisfying. It is ideal for users who want more feedback than a linear switch, while still keeping the typing experience smooth and refined.

PIIFOX Jade Spike Switch tactile feedback precise satisfying

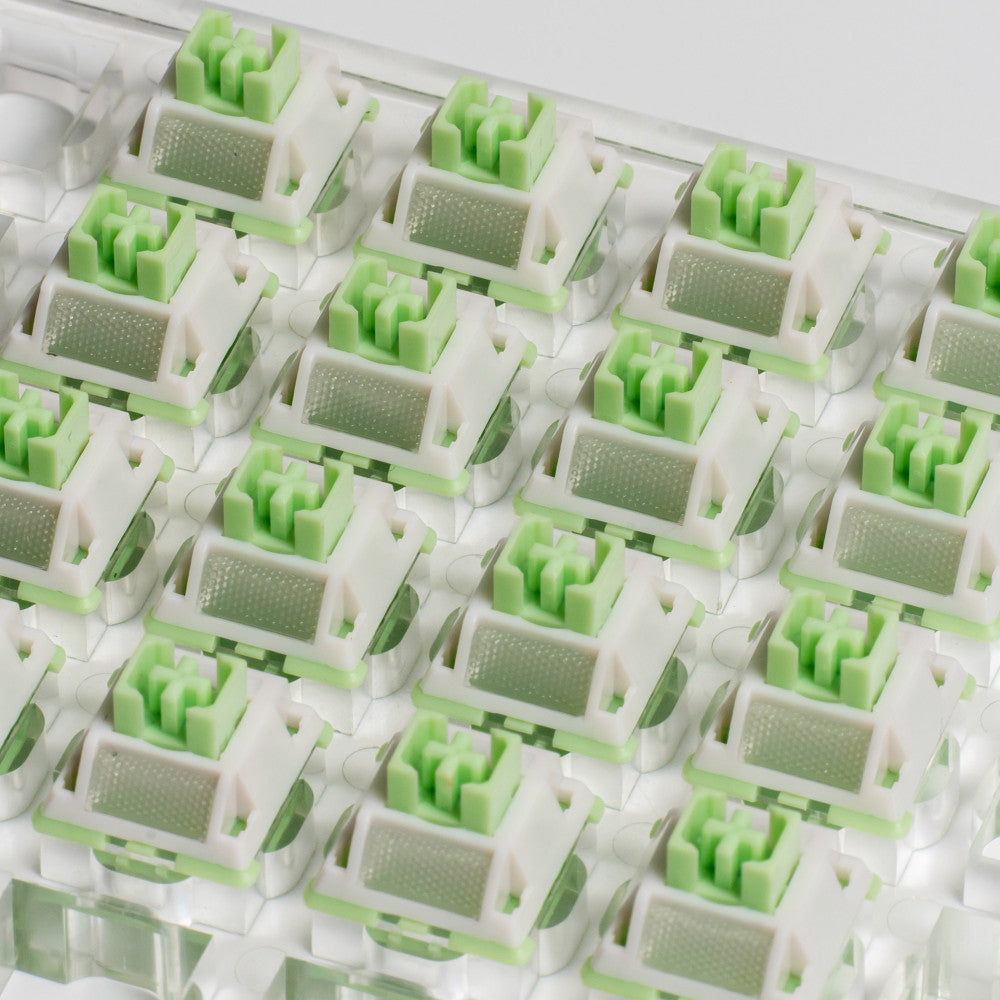

22mm Spring for a Stronger Rebound

Jade Spike uses a 22mm spring to create a stronger and more energetic rebound. Combined with a POM stem, PC top housing, and nylon bottom housing, the switch delivers a stable tactile press with a deeper thocky bottom-out sound. The result is a tactile switch that feels firm, responsive, and full of character.

PIIFOX Jade Spike Switch 22mm spring POM stem thocky tactile

For Users Who Want a Stronger Tactile Feel

Compared with lighter or quieter tactile switches, Jade Spike is tuned for a stronger press, a firmer bottom-out, and a deeper thocky sound. It is a better choice for users who want every keystroke to feel more present and expressive.

PIIFOX Jade Peak

Total Travel	3.50±0.3mm
Actuation Travel	2.00±0.5mm
Actuation Force	40±5gf
Initial Force	30gf Min
Bottom-out Force	48gf Max
Mechanical Life	60 million cycles
Electrical Life	60 million cycles

PIIFOX Jade Spike

Total Travel	3.60+0.3mm
Actuation Travel	2.00+0.6mm
Actuation Force	47+10gf
Initial Force	55gf Min
Bottom-out Force	60gf Max
Tactile Force	65±10gf
Tactile Travel	0.50mm
CK Value	30%-45%

PIIFOX Jade Ripple

Total Travel	3.80+0.3mm
Actuation Travel	2.00+0.5mm
Actuation Force	47+5gf
Initial Force	35gf Min
Bottom-out Force	55gf Max
Mechanical Life	50 million cycles
Electrical Life	50 million cycles

5-Pin Stability with Light Support

Jade Spike features a 5-pin structure for stable installation and reliable keyboard builds. It supports lighting, making it suitable for both clean minimalist builds and RGB mechanical keyboards. With factory lubrication and up to 60 million keystrokes of operation life, Jade Spike is ready for long-term daily use.

PIIFOX Jade Spike Switch 5-pin lubricated 60M lifespan RGB ready
