Jade Peak Linear Mechanical Switch Set

PIIFOX Jade Peak Mechanical Switch

$5.25

Add to cart

Features

Specs

FAQ

Downloads

Reviews

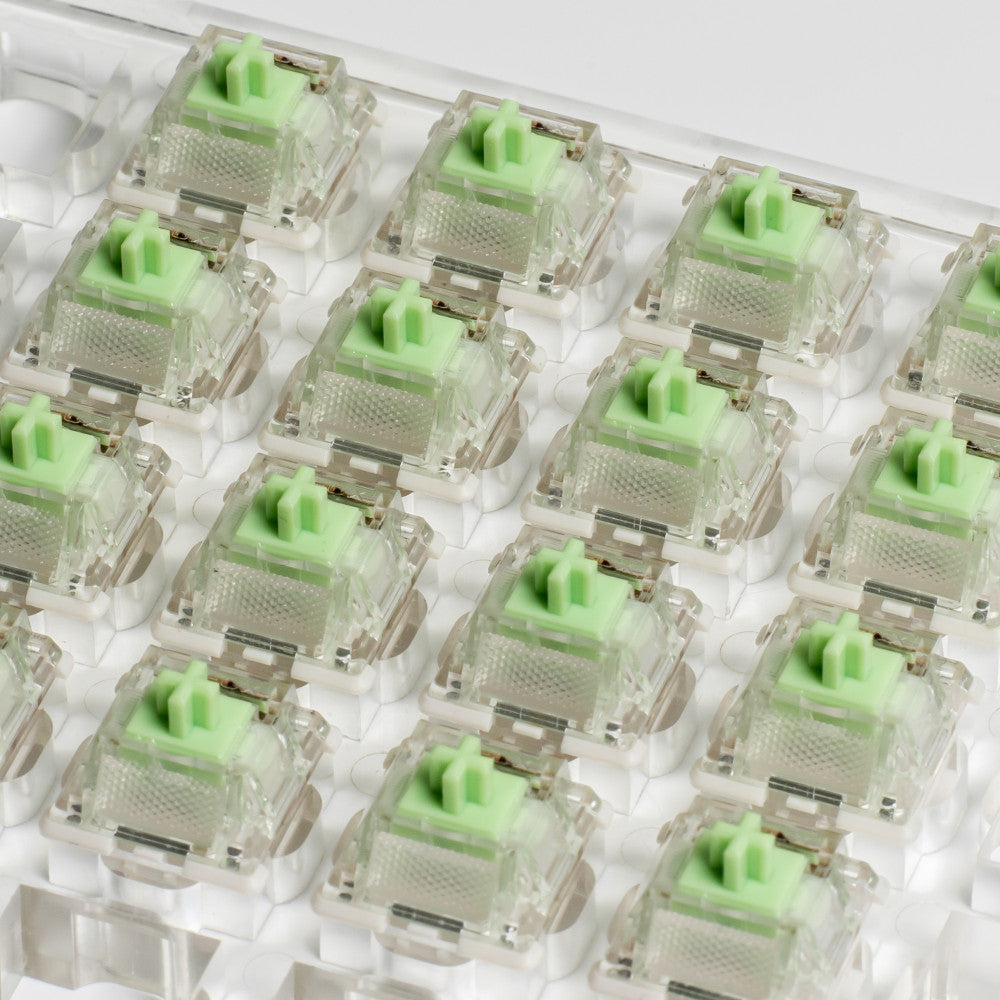

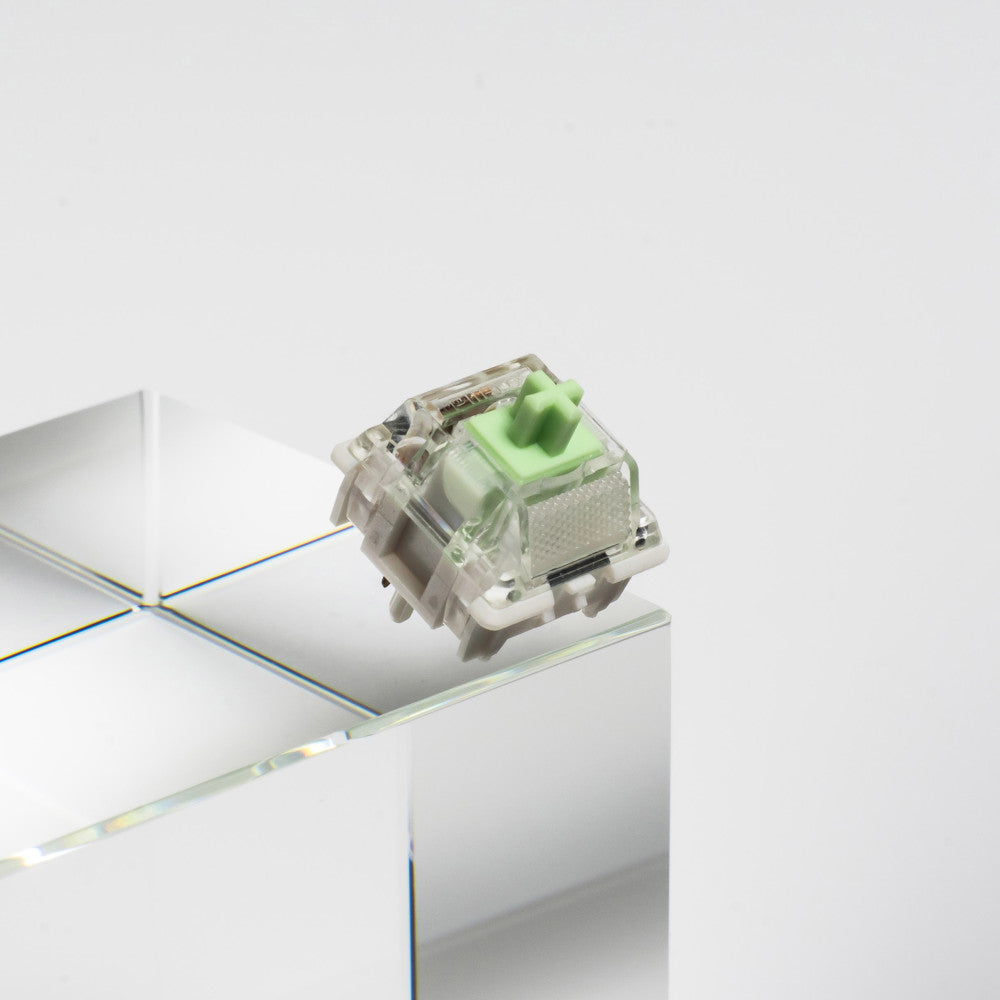

Smooth Linear Feel, Deep Thocky Sound

PIIFOX Jade Peak is designed for a clean and smooth linear typing experience. With a 40±5gf operating force and 48gf bottom-out force, it feels light enough for long typing sessions while still offering stable feedback with every press. The 3.5±0.3mm total travel gives each keystroke a shorter, more responsive feel, while the thocky sound profile brings a deep, rounded tone to your keyboard.

PIIFOX Jade Peak Switch smooth linear thocky 40gf

POM Stem for a Smoother Press

At the center of every Jade Peak switch is a POM stem, chosen for its naturally smooth movement and stable typing feel. Combined with factory lubrication, each press feels clean, consistent, and refined right out of the box. No extra tuning required — Jade Peak is ready to deliver a polished typing experience from the first keystroke.

PIIFOX Jade Peak Switch POM stem factory lubricated smooth typing

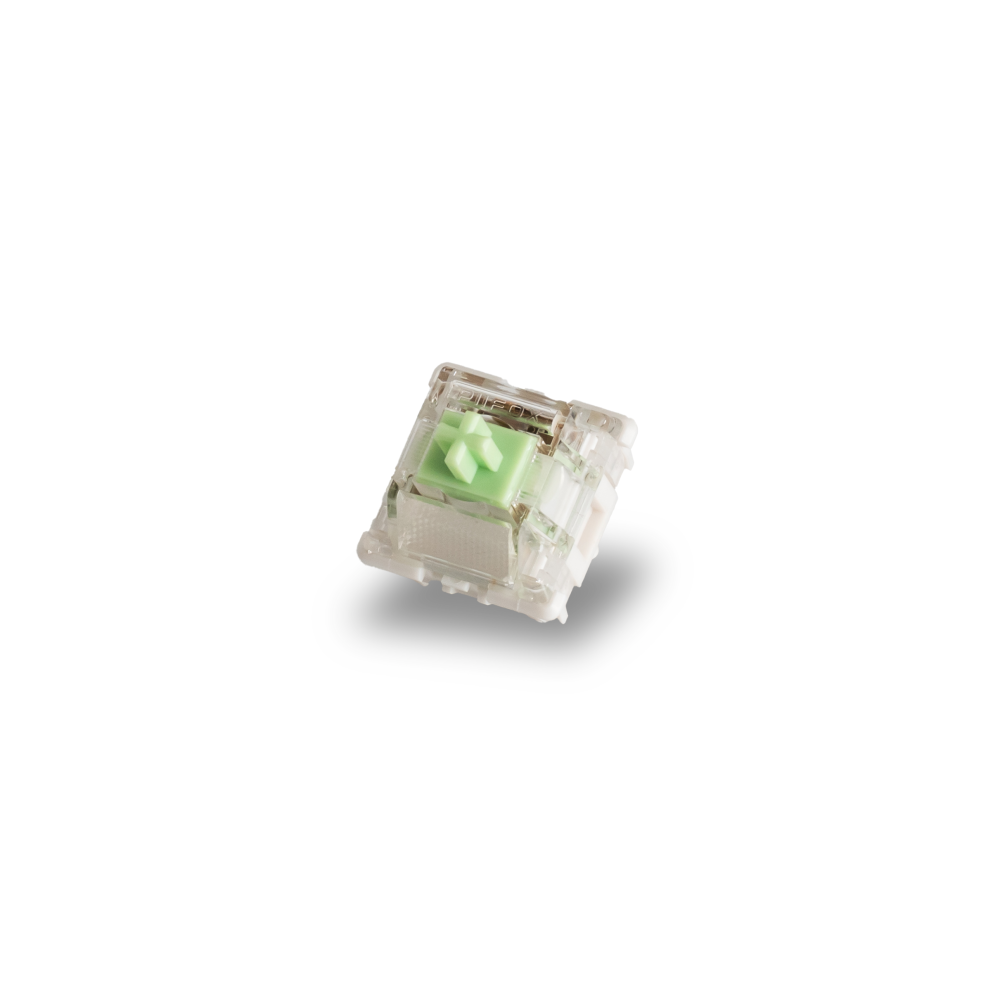

PC Top Housing, Nylon Bottom Housing

Jade Peak uses a PC top housing and nylon bottom housing to shape a deeper, more rounded sound profile. The PC top helps maintain a clean upper structure, while the nylon bottom contributes to the warm and thocky bottom-out tone. Together with a 20mm spring, the switch delivers a stable rebound and a balanced typing rhythm, making every keystroke feel controlled and satisfying.

PIIFOX Jade Peak Switch PC top nylon bottom 20mm spring thocky sound

Find the Feel That Fits You

Jade Peak is tuned for users who prefer a smooth linear switch with a deeper thocky sound. It offers a light operating force, shorter total travel, and a stable bottom-out feel, making it suitable for daily typing, office work, and long keyboard sessions.

PIIFOX Jade Peak

Total Travel	3.50+0.3mm
Actuation Travel	2.00+0.5mm
Actuation Force	40±5gf
Initial Force	30gf Min
Bottom-out Force	48gf Max
Mechanical Life	60 million cycles
Electrical Life	60 million cycles

PIIFOX Jade Spike

Total Travel	3.60+0.3mm
Actuation Travel	2.00+0.6mm
Actuation Force	47+10gf
Initial Force	55gf Min
Bottom-out Force	60gf Max
Tactile Force	65±10gf
Tactile Travel	0.50mm
CK Value	30%-45%

PIIFOX Jade Ripple

Total Travel	3.80+0.3mm
Actuation Travel	2.00+0.5mm
Actuation Force	47+5gf
Initial Force	35gf Min
Bottom-out Force	55gf Max
Mechanical Life	50 million cycles
Electrical Life	50 million cycles

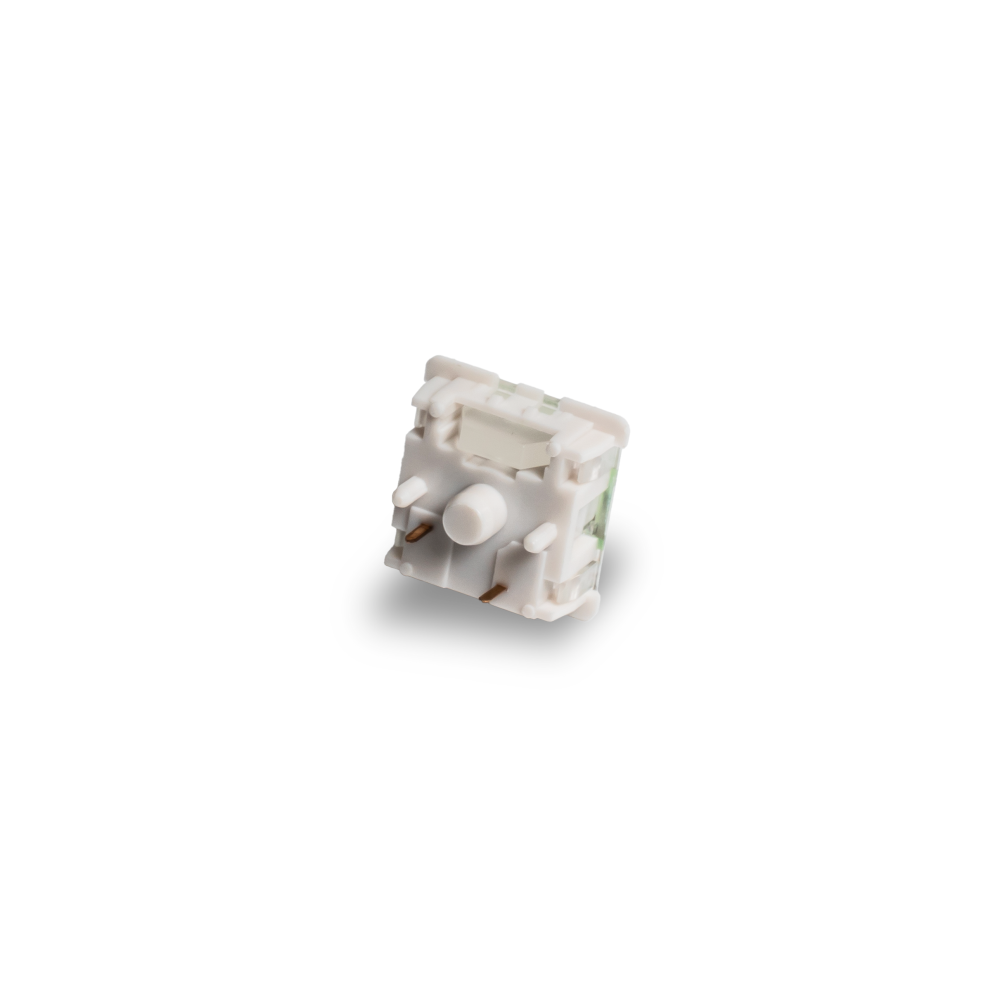

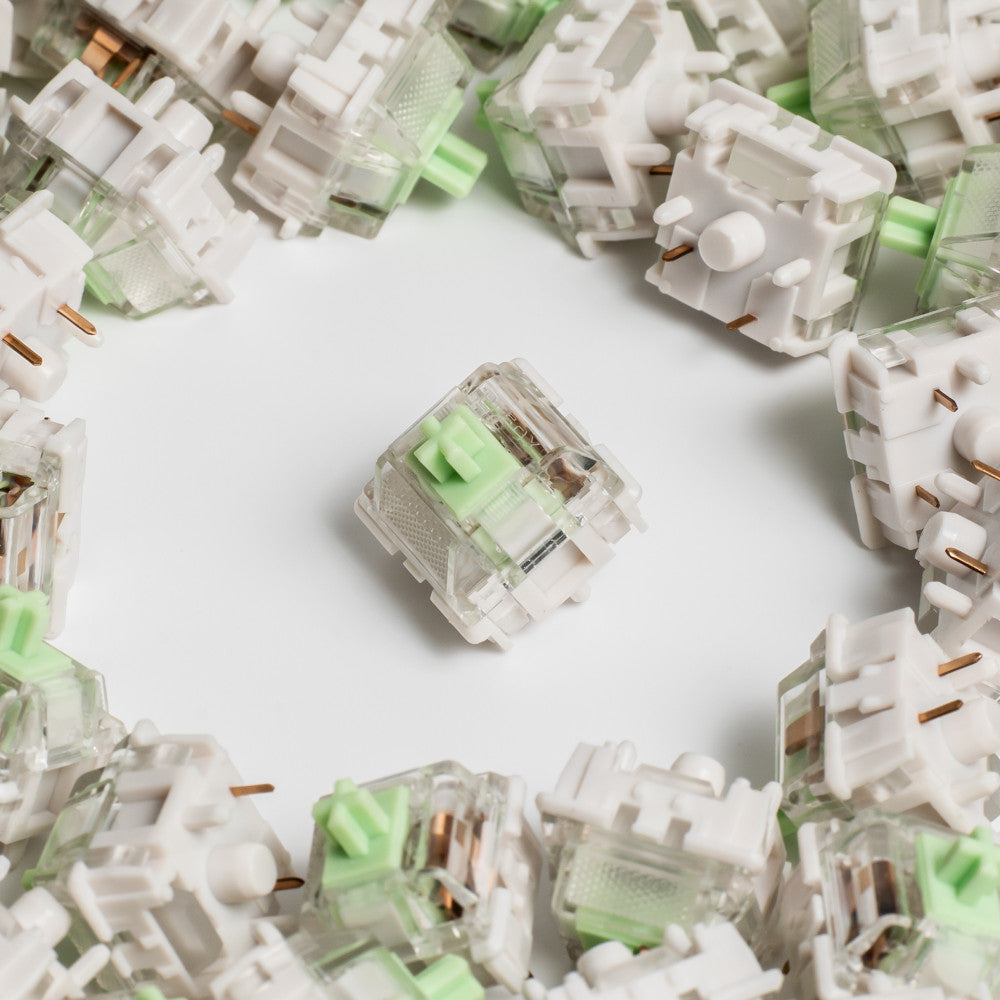

5-Pin Structure, Built for More Keyboard Builds

Jade Peak features a 5-pin structure for improved mounting stability and wider compatibility with mechanical keyboard builds. It supports lighting, making it suitable for both minimalist keyboards and RGB setups. With up to 60 million keystrokes of operation life, Jade Peak is built for long-term daily use.

PIIFOX Jade Peak Switch 5-pin RGB 60M lifespan stable mounting

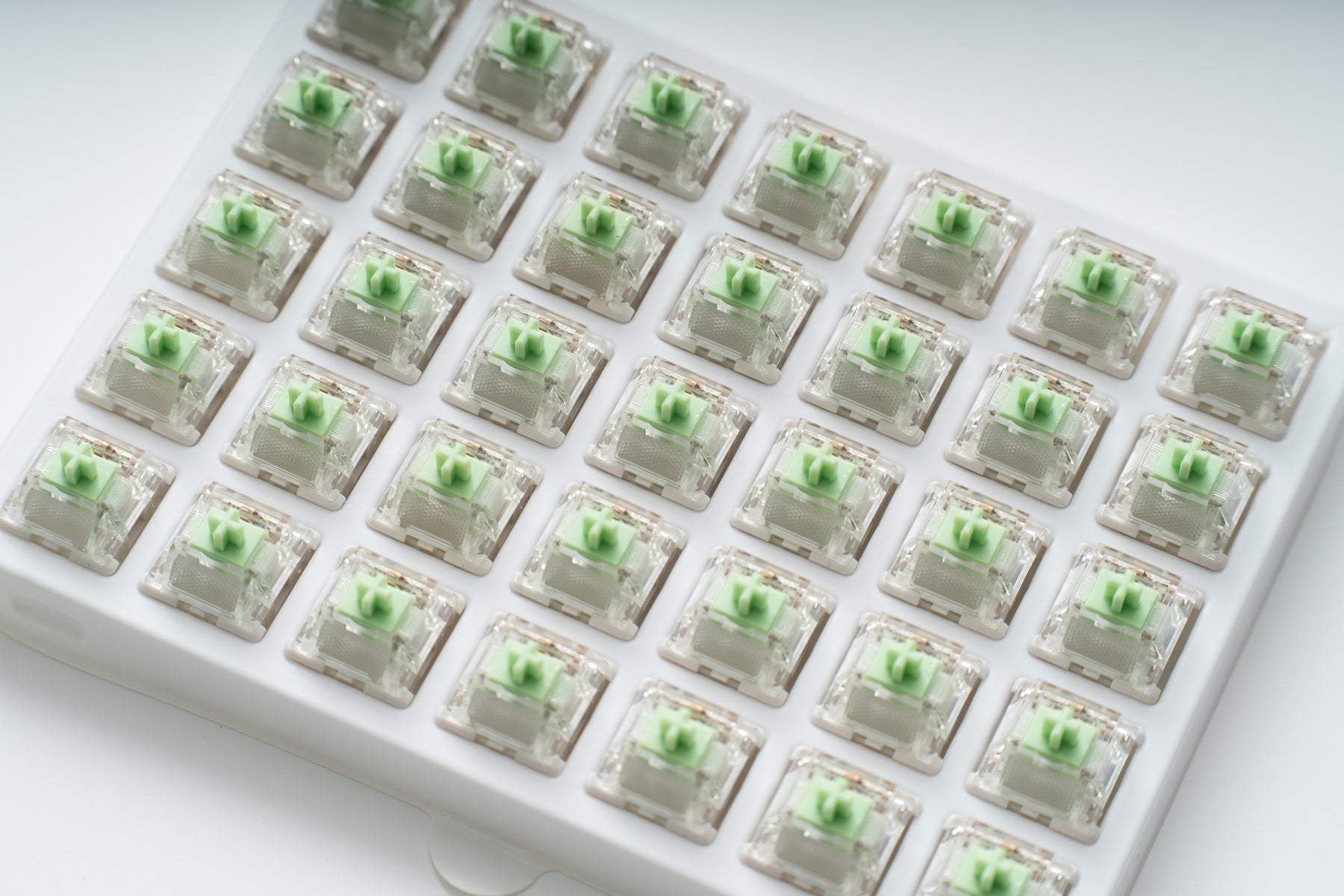

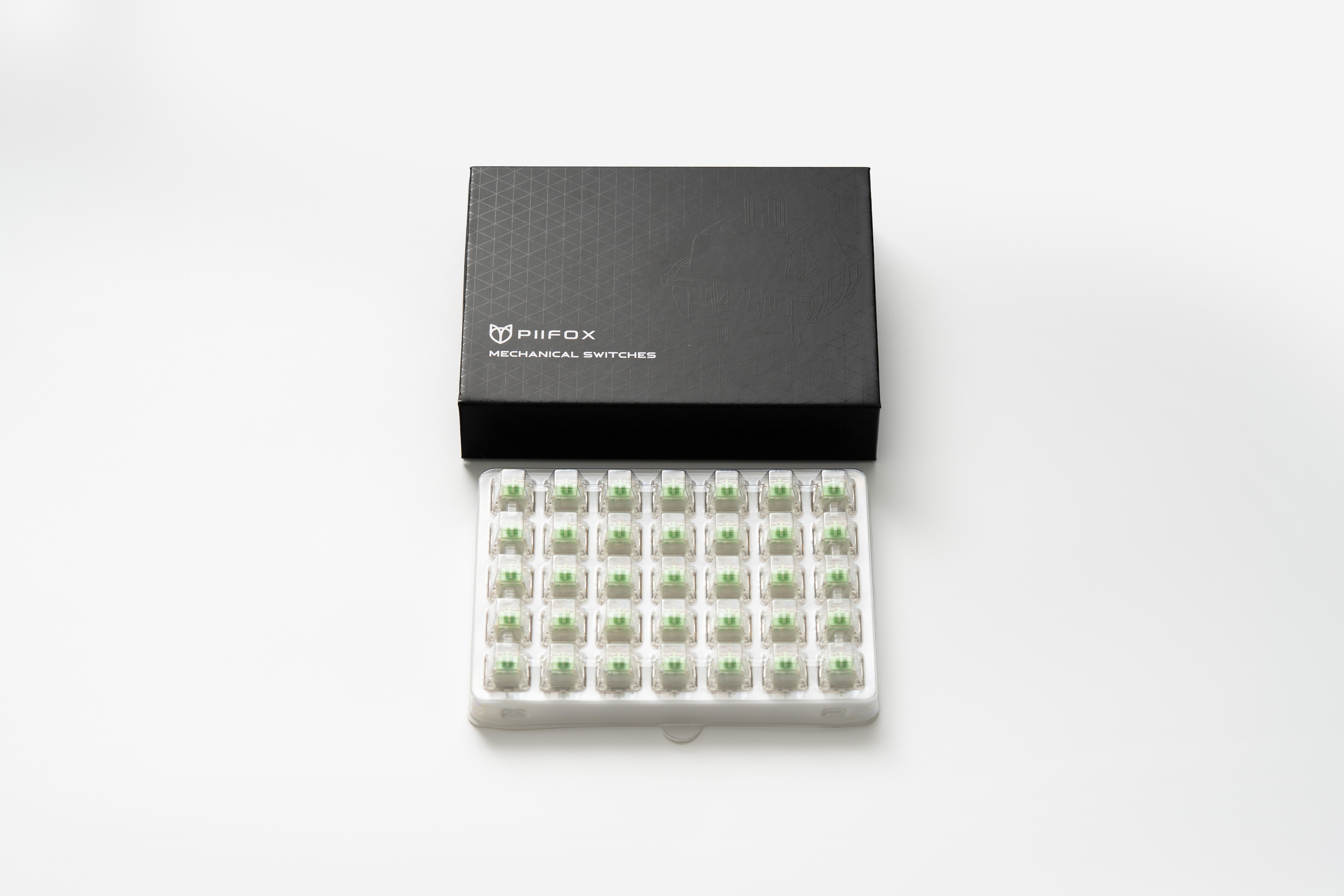

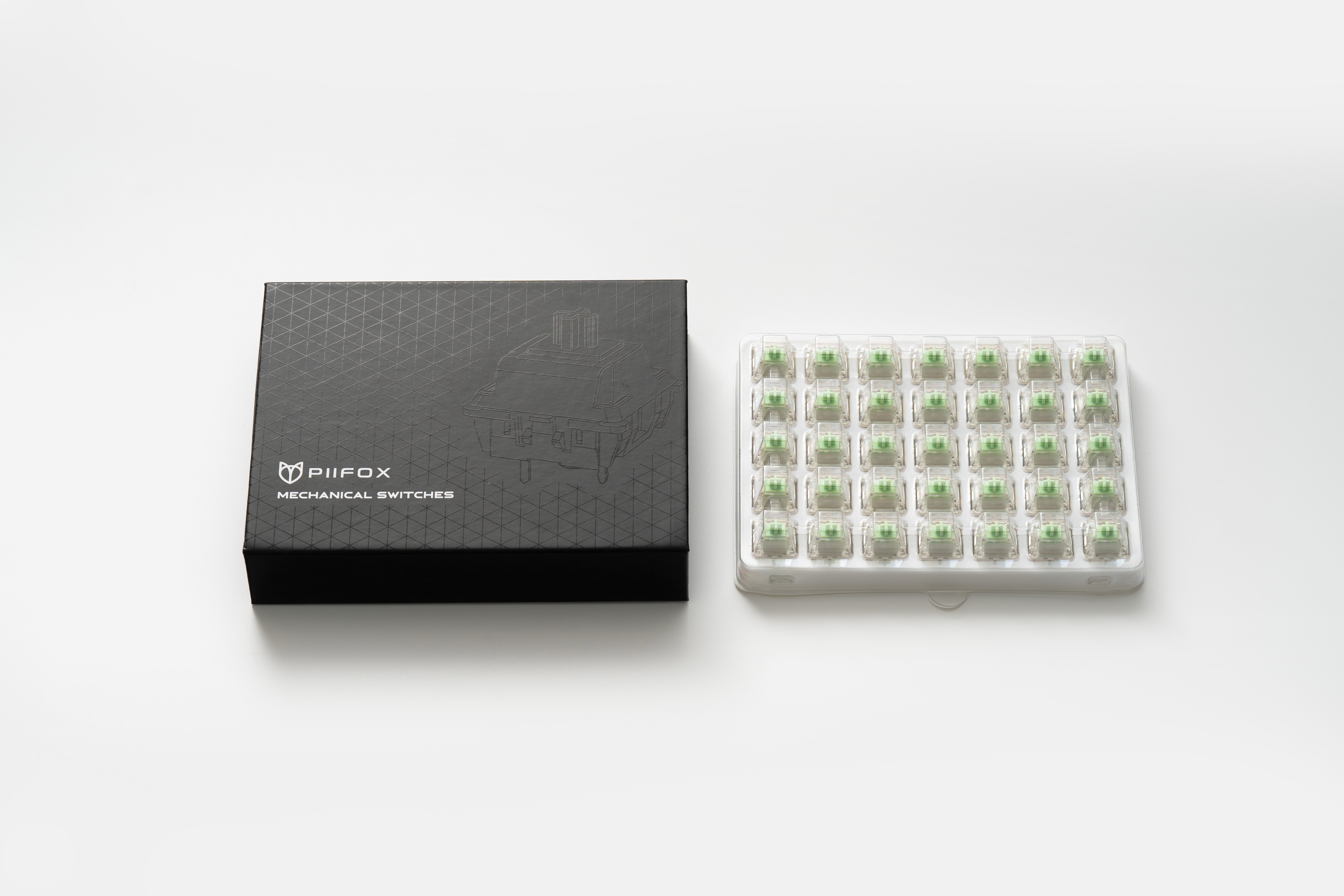

What's in the Box

PIIFOX Jade Peak Mechanical Switch × 35
